My Unreal Engine Patterns

 published in Game Development
   795 words   4 minutes

The newest version of the Unreal Engine is growing to be the most powerful engine available to the public. It contains many improvements presented through the years in papers and conferences like the GDC.

But, due to be too big, it’s important to know some good practices to be able to produce more in less time, or to have less problems or errors. These are the basic patterns I use for my Unreal Engine projects.

This list will be updated based on the learnings made.

General Tips

  • Always comment your code, be per snippet, in the declaration (C++) or event/function declaration (Blueprint)
  • Events/functions should have a single responsibility

Objects Structure

  • Pay attention with strong references in blueprints
    • Each reference to a concrete Blueprint type is an increase of memory
    • Try to move the reference type as close as possible to Unreal built-in types, like Character, Actor, ActorComponent, etc
    • Use Soft References to classes and load them at runtime using one of the methods below:
      • Async Load Class Asset needs less configuration to use
      • Async Load Primary Asset needs more configuration, but its more flexible

Blueprints

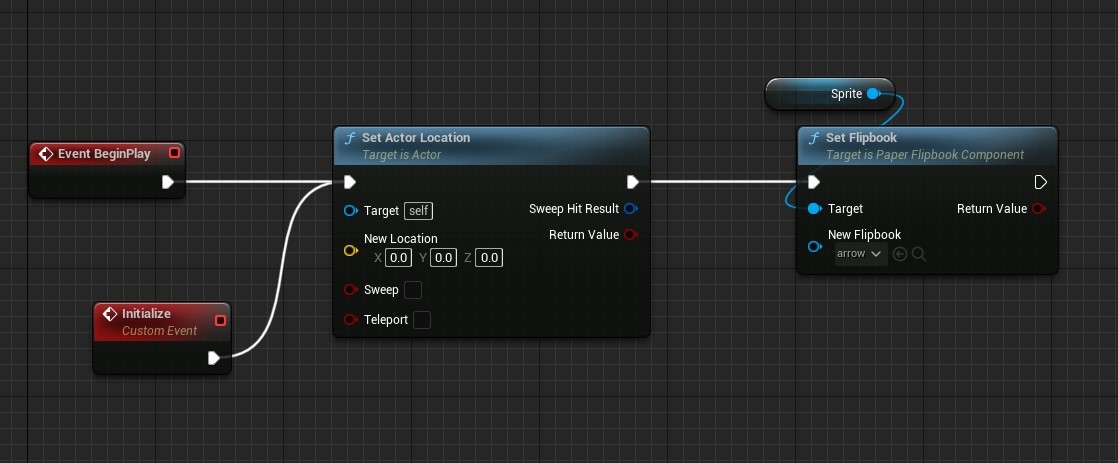

  • Use multiple inbound to a exec with caution, avoid most of the times

    • This can lead to confusion, especially if one of the events is overridden
    • What may happens if you need to override the Initialize event in a children blueprint? The BeginPlay event will execute the code its linked, not the Initialize event. This will lead to bugs in the children blueprint.
    • Avoid as much as possible to have multiple input exec. In real code (that will be probably much bigger), it will be hard to be sure about the code flow and the event/function result. Simplicity is key, always.

  • Refactor a complex event into a simpler one

    • The Sequence node is great to organize the flow of your event.
    • Break big events in multiple minor events/functions
    • Repeated code should also be moved to its own function

  • Don’t be afraid to use Set Timer By Event/Function Name in functions

    • It’s better for organization, as delegate will be in its own event/function

  • Instead of a boolean flag changed in many places but checked in one or few places, use DoOnce node

    • If DoOnce is opened/closed in many places, create custom events calling Open and Close instead of use long Exec links.

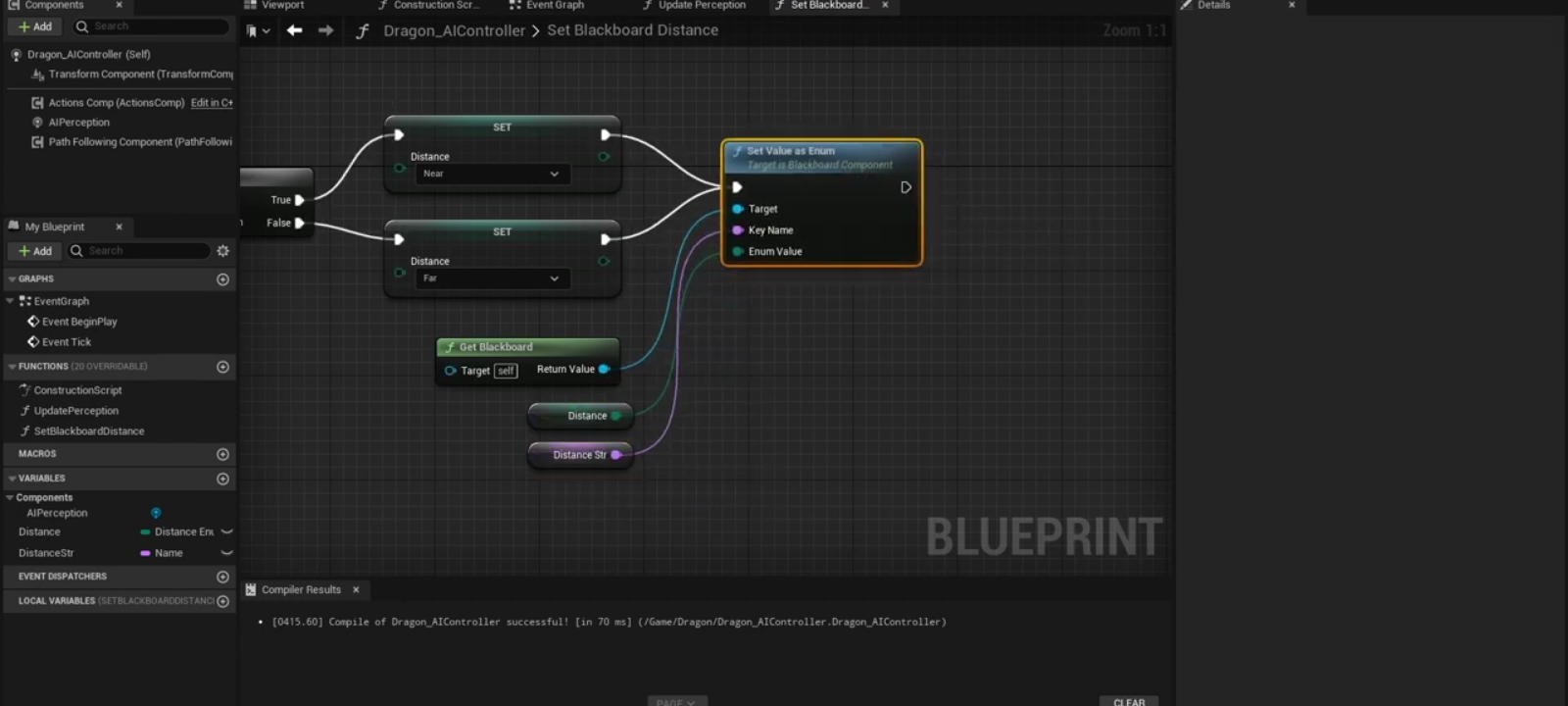

  • Prefer Select instead of Branch to select values

    • Beyond the code flow simplification, Select allows to handle multiple values and is configurable for many data types (even enums).

C++

  • Implement most of the behavior in C++, exposing extension points to Blueprint, as examples:

    • Basic Character functionality
    • Actor Components
    • Integrations with online services for account control
    • Expose to Blueprints some funcionally that it’s only available in C++
    • Wrap long running tasks in latent functions (tied to Actors) and async tasks (instances of BlueprintAsyncActionBase, that are reusable)

  • UObject::DuplicateObject only copies variables marked with UPROPERTY()

  • To create a function that has more than one return value, just add function arguments by reference

UFUNCTION(BlueprintCallable)
float ReturnMultipleValues(FString& TextRet);

C++ to Blueprint Magic

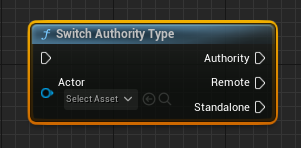

  • Use multiple inputs (UFUNCTION with meta ExpandEnumAsExecs) to reduce the need of Switch and Branch nodes in Blueprint code
UENUM(BlueprintType)
namespace EAuthorityType
{
	enum Type
	{
		Authority,
		Remote,
		Standalone
	};
}

...

UFUNCTION(BlueprintCallable, meta = (ExpandEnumAsExecs = "OutResult"))
void SwitchAuthorityType(AActor* Actor, TEnumAsByte<EAuthorityType::Type>& OutResult);
  • Use DetermineOutputType with DynamicOutputParam to dynamically update BP function output type , without the need to write a custom K2Node
UFUNCTION(BlueprintCallable, meta=(DeterminesOutputType="ActorClass"))
AActor* GetActorOfClass(const UObject* WorldContextObject, TSubclassOf<AActor> ActorClass);

UFUNCTION(BlueprintCallable, meta=(DeterminesOutputType="ActorClass", DynamicOutputParam="OutActors"))
void GetAllActorsOfClass(TSubclassOf<AActor> ActorClass, TArray<AActor*>& OutActors);

Widgets

  • Implement optimizations from Unreal Engine documentation.
    • Use event-driven updates instead of bounded attributes
    • Break complex widgets into smaller ones
    • Use Spacers instead of Size Boxes when possible
    • Avoid combine Scale Boxes and Size Boxes
    • Use Rich Text Widgets sparingly Using Common Text
    • Pay attention to the animation costs according to the following table:
Cost Examples
No CPU Cost/Least Expensive Material-only animations.
Low CPU Cost Blueprint-scripted animations that do not require Sequencer.
High CPU Cost Sequencer animations made with UMG’s animation editor.
Most Expensive CPU Cost Animations that cause layout changes.
  • About animations, we’ll use CommonActivatableWidgetStack transitions most of the time.

Automation and Validations

Other References

Unreal Engine
Updated on 2022-12-11
